EX60/600

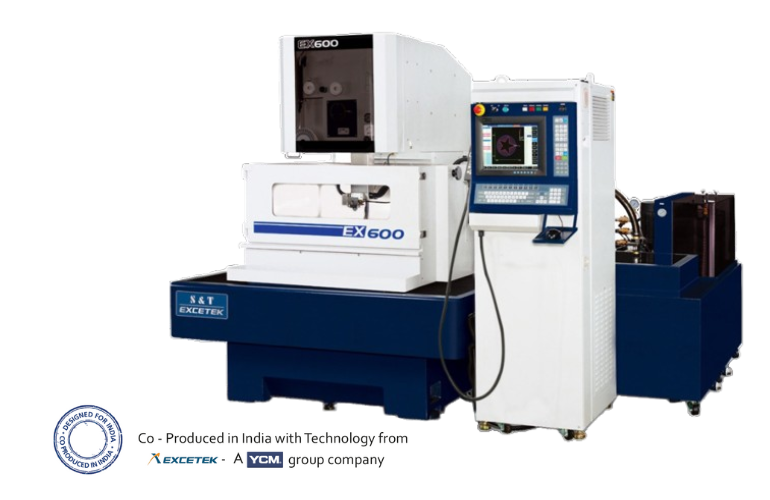

S&T Excetek CNC Wire EDM Machine EX 60/600
S&T Excetek EX Series CNC Wire EDM Machines Manufactured In India. Latest Tech, High Accuracy And Performance CNC Wire EDM Machines For Superior Surface Finish.
Travel Of X, Y (mm)
600*400
Travel Of U, V (mm)
120*120
Max. Work Piece Dimension (mm)
W1000 X D700 X H305
SPECIFICATION
EX60/600
Unit
Values
Max. Work Piece Dimension
Mm
W1000 X D700 X H305
Max. Work Piece Weight
Mm
750
Travel Of X, Y, Z
Mm
600*400
Travel Of U, V
Mm
120*120
Number Of Axes Control
No
5-Axis Servo

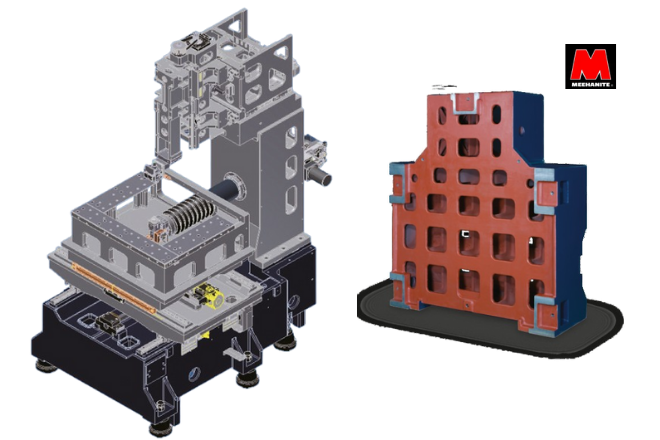

- To ensure thermal balance, rib location is designed by Finite Element Analysis (FEA) assuring an optimized rigid structure
- Rigid U G axis design
- High response AC servo motor to provide good accuracy.
- Water-cooled lower arm prevents thermal expansion resulting improvements on job accuracy.
- LED type work Lamp
- To ensure thermal balance, rib location is designed by Finite Element Analysis (FEA) assuring an optimized rigid structure
- Rigid U G axis design
- High response AC servo motor to provide good accuracy.
- Water-cooled lower arm prevents thermal expansion resulting improvements on job accuracy.
- LED type work Lamp
- CNC Device: Window based Industrial standard PC.
- CPU: Pentium 64-bit high speed CPU.
- Operational Interface: 15" TFT Monitor, Keyboard, Mouse, Buzzer.

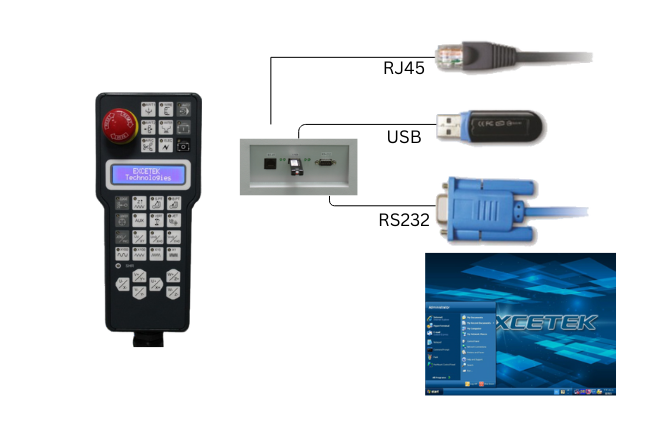

- Three modes of data transfer namely LAN, RS-232 and USB.
- Used CRC system to verify received data.
- Memory Capacity: 2 GB industrial standard CF card.
- Min command input unit: 0.0001 mm.
- Programmable dimension 9999.9999 mm.
- Switchable Units: Inch/Metric.

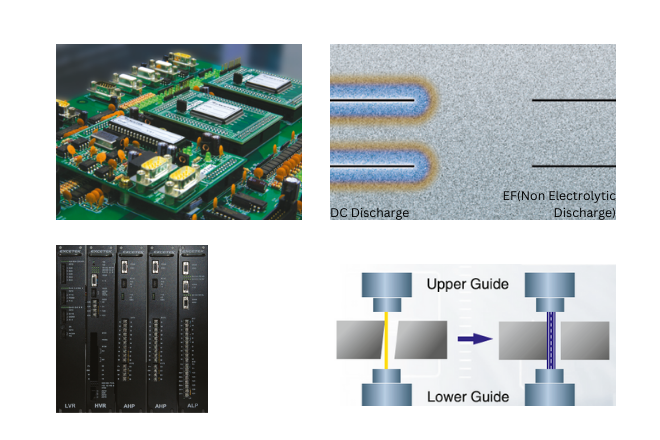

- Electrolysis Free AC Generator
- Special short circuit elimination circuit
- Modular Designed Electric circuit PCB with LED indication on all I/O Modules.
- User Friendly operations
- Electrolysis Free AC Generator
- Special short circuit elimination circuit
- Modular Designed Electric circuit PCB with LED indication on all I/O Modules.
- User Friendly operations
