SKITEK Medium Speed CNC Wire EDM SR 400M
SR 400M
SKITEK Medium Speed CNC Wire EDM SR 400M
SKITEK Medium Speed CNC Wire EDM SR 400M molybdenum recirculating wire cnc edm. Cost effective, excellent surface finish, best reliable cnc wire edm machine
X x Y x Z Travel (mm)
300 x 400 x 250
Job accuracy
±0.005
Stable cutting speed
130 mm² / min
Specification
SR 400M
Unit
Values
| Machine dimension (W x L x H) | mm | 1160 x 1650 x 1850 |
| Machine weight | kg | 1500 |
Features

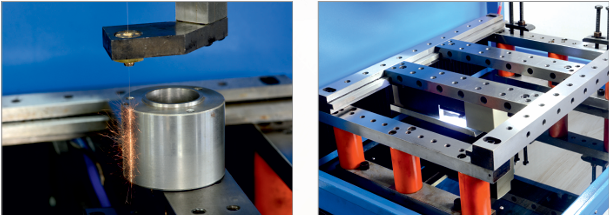

Machine Highlights
The machine includes automatic center finding and automatic edge finding capabilities.- The machine enables automatic adjustment of wire verticality
- The Z - axis can rapidly elevate and automatically return to the memory position.
- Maximum taper of ±10° / 80 mm can be cut
Salient Feature
- The operation is designed to be user friendly and inserting wire is easy
- The wire tension is automatically regulated.
- There is no requirement to disconnect or remove the wire for different workpiece thicknesses when performing Z-axis movements
- The selection of cutting data is done automatically, and it ensures consistent results in terms of accuracy and finish for every job.
- The system incorporates an automatic lubrication mechanism

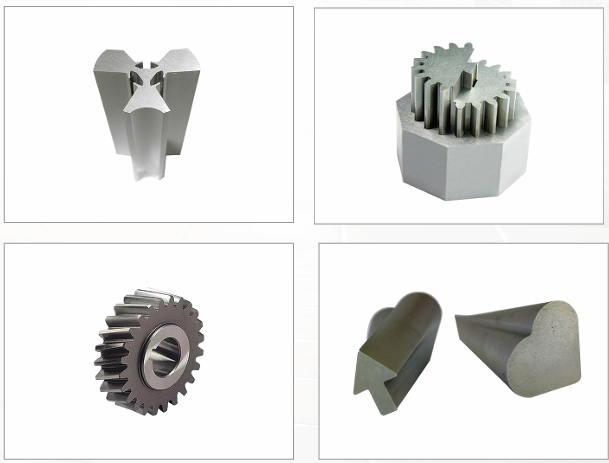

Sample Trial Components
Standard Accessories
- The machine incorporates a wire alignment block and Toolbox Set.
- The machine is equipped with job clamping tools.
- ϕ 0.18 mm Wire Spool (2000 Mtrs) - 1 No.
- Power Feeder Carbide - 3 Nos.
- ϕ 0.18 mm Ruby Guide - 2 Nos.
- Jairun Working Solution - 18 Ltrs.
- Mouse, Keyboard with Mouse Pad - 1 Set.
- Aluminium Alloy Paper Filter - 1 No
Optional Accessories
- Roller disassembly unit.
- Wire drawer unit.
- Aluminium cutting circuit.
- Z height 350 mm / 500 mm
Frequently Asked Questions
What is SKITEK Medium Speed CNC Wire EDM SR 400M?
SKITEK Medium Speed CNC Wire EDM SR 400M molybdenum recirculating wire cnc edm. Cost effective, excellent surface finish, best reliable cnc wire edm machine
What are the key specifications of SKITEK Medium Speed CNC Wire EDM SR 400M?
Machine dimension (W x L x H): 1160 x 1650 x 1850 mm. Machine weight: 1500 kg. Table travel (X x Y x Z): 300 x 400 x 250 mm. Table size (W x L): 550 x 690 mm
Which machine category does SKITEK Medium Speed CNC Wire EDM SR 400M belong to?
SKITEK Medium Speed CNC Wire EDM SR 400M belongs to the Medium Speed CNC Wire EDM category.
