SKITEK Medium Speed CNC Wire EDM SR 7055S
SR 7055S
SKITEK Medium Speed CNC Wire EDM SR 7055S
SKITEK Medium Speed CNC Wire EDM SR 7055S molybdenum recirculating wire cnc edm. Cost effective, excellent surface finish, best reliable cnc wire edm machine
X x Y x Z Travel (mm)
550 x 700 x 400
Job accuracy
±0.005
Stable cutting speed
130 mm² / min
Specification
SR 7055S
Unit
Values
| Machine dimension (W x L x H) | mm | 1730 x 2020 x 2080 |
| Machine weight | kg | 2850 |
Features

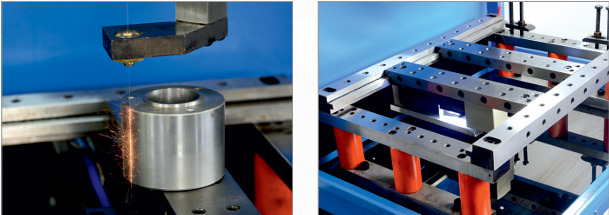

Machine Highlights
Five axis servo drive system.- The machine includes automatic center finding and automatic edge finding capabilities
- The machine enables automatic adjustment of wire verticality.
- The Z - axis can rapidly elevate and automatically return to the memory position
Salient Feature
- The operation is designed to be user friendly and inserting wire is easy
- The wire tension is automatically regulated.
- There is no requirement to disconnect or remove the wire for different workpiece thicknesses when performing Z-axis movements
- The selection of cutting data is done automatically, and it ensures consistent results in terms of accuracy and finish for every job.
- The system incorporates an automatic lubrication mechanism

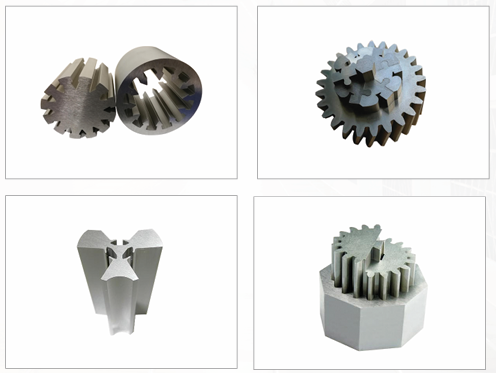

Sample Trial Components
Standard Accessories
- The machine incorporates a wire alignment block and Toolbox Set.
- The machine is equipped with job clamping tools.
- ϕ 0.18 mm Wire Spool (2000 Mtrs) - 1 No.
- Power Feeder Carbide - 3 Nos.
- ϕ 0.18 mm Ruby Guide - 2 Nos.
- Jairun Working Solution - 18 Ltrs.
- Mouse, Keyboard with Mouse Pad - 1 Set.
- Aluminium Alloy Paper Filter - 1 No
Optional Accessories
- Roller disassembly unit.
- Wire drawer unit.
- Aluminium cutting circuit.
- Z height 350 mm / 500 mm
