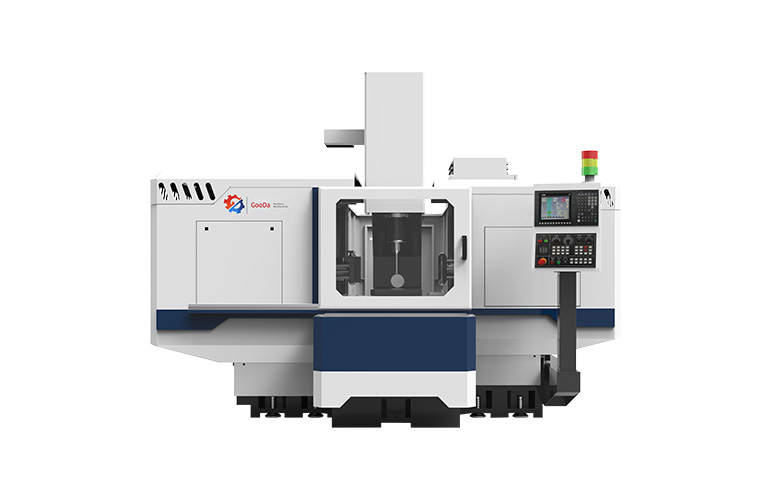

Duplex Milling Machine TH-430NC
TH-430NC
Duplex Milling Machine TH-430NC
The machine adopts rigid cast machine base with strong construction and stable performance. It only needs to input workpiece performing datas, can realize four surfaces milling and four edges chamfering by one setup. Which can reduce working strength of operator and increase productivity, to achieve high accuracy for dimension, squareness and parallelism.
Max. cutting capacity (mm)
2x2
Worktable size (mm)
330x330
Spindle speed (rpm)
50-500
Specification
TH-430NC
Unit
Values
| Number of control axes | 4 | |
| Max. cutting capacity | mm | 2x2 |
| Processing capacity | mm | 20-430 |
| Worktable size | mm | 330x330 |
| Max.load capacity | kg | 400 |
| Spindle speed | rpm | 50-500 |
| Machine size | mm | 3150 x 2900 x 2200 |
| Machine weight | kg | 6500 |
.jpg)
Frequently Asked Questions
What is Duplex Milling Machine TH-430NC?
The machine adopts rigid cast machine base with strong construction and stable performance. It only needs to input workpiece performing datas, can realize four surfaces milling and four edges chamfering by one setup. Which can reduce working strength of operator and increase productivity, to achieve high accuracy for dimension, squareness and parallelism.
What are the key specifications of Duplex Milling Machine TH-430NC?
Number of control axes: 4. Max. cutting capacity: 2x2 mm. Processing capacity: 20-430 mm. Worktable size: 330x330 mm
Which machine category does Duplex Milling Machine TH-430NC belong to?
Duplex Milling Machine TH-430NC belongs to the Duplex Milling Machine category.
How can I request a quote for Duplex Milling Machine TH-430NC?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
