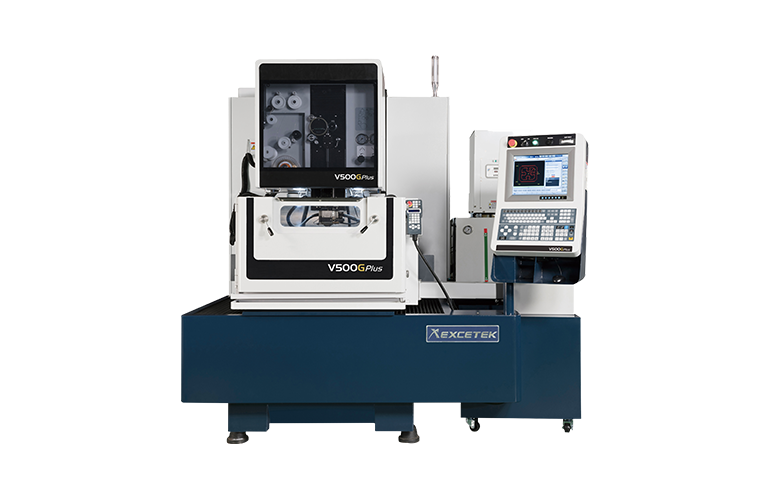

S&T EXCETEK CNC Wire EDM V 500GPlus
V 500GPlus
S&T EXCETEK CNC Wire EDM V 500GPlus
S&T Engineers offers the V 500GPlus CNC Wire Cut EDM Machine, a compact-size Wire EDM machine designed for high-precision machining, automatic wire threading, superior surface finish, and reliable cutting performance.
X/Y/Z & U/V Travel
500×300×260 & 120×120
Wire Diameter
Ø 0.15~0.3 mm, , 0.07 & 0.1 mm(opt)
Best Surface Finish (1+3 Cut)
0.35 Std, 0.15 (opt) μRa
Specification
V 500GPlus
Unit
Values
| Max. work piece dimension (WxDxH) | mm | 850 × 600 × 255 |
| Max. work piece weight | kg | 600 |
| Machine Size | mm | 2215 x 2480 x 2205 |
| Machine weight (Machine + Generator + Tank) | kg | 3500 |

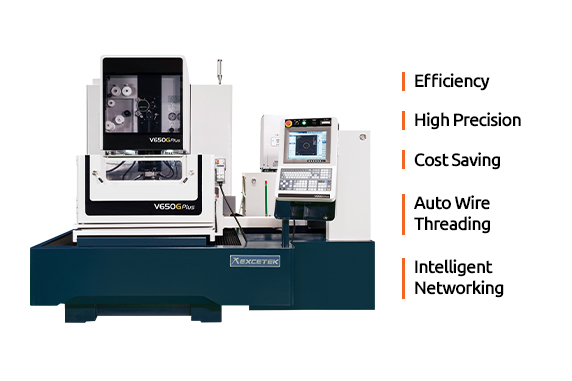

Features
Operational Features
High Precision: Smart control for superior accuracy and finish.- Cost Saving: Smart power management with reduced wire usage.
- Auto Wire Threading: Fast threading for continuous unattended machining.
- Intelligent Network: Remote monitoring and controller connectivity.
- High Efficiency: DPM and auto measurement for stable, efficient machining.

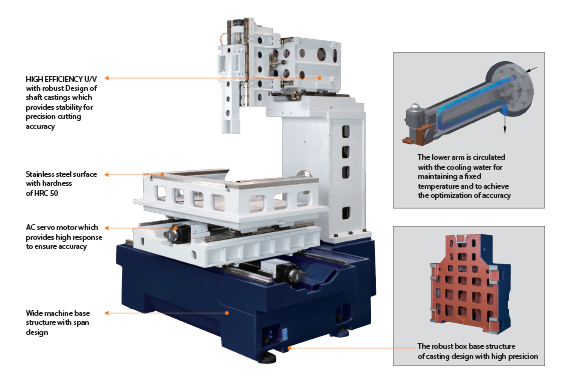

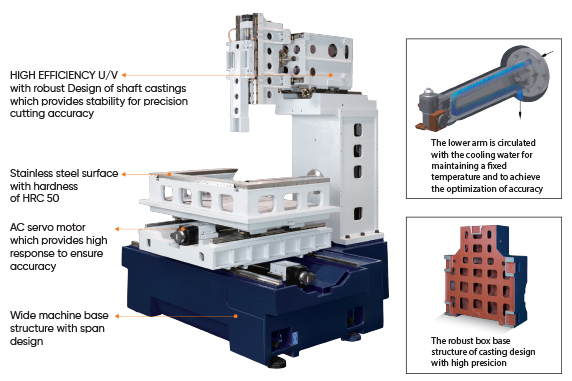

Machine Design
FEA-designed high-rigidity cast structure with reinforced ribs minimizes deformation for superior stability and precision.

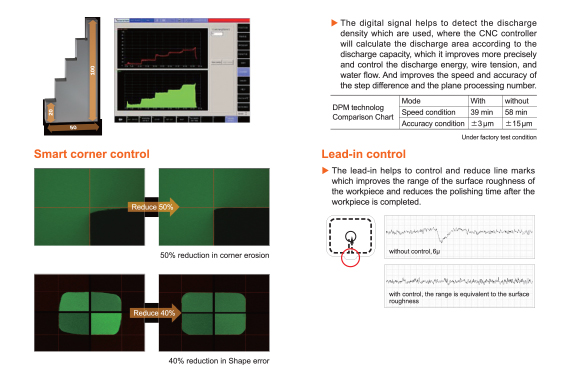

Digital Power Management - DPM
- Step processing condition
- Stable processing module
- Intelligent corner control
- Lead-in control
- Corner arc control
- High speed working condition
Advanced Automation Feature

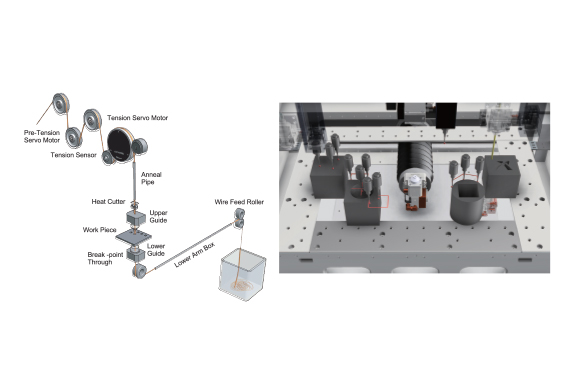

Auto Wire Threading System
- Automatic wire threading at the break point with water jet technology enables continuous unattended machining for workpieces up to 400 mm thick.
Automated Measurement & Machining
- Automated Measurement & Machining enables auto calibration of inclination, AR, and reference points, while performing AWT, 3D compensation, inspection, and continuous unmanned machining with report generation.
|

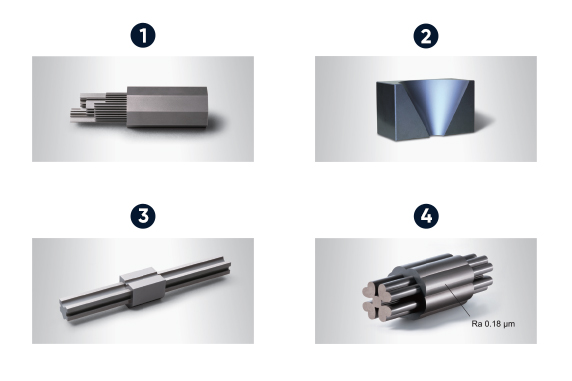

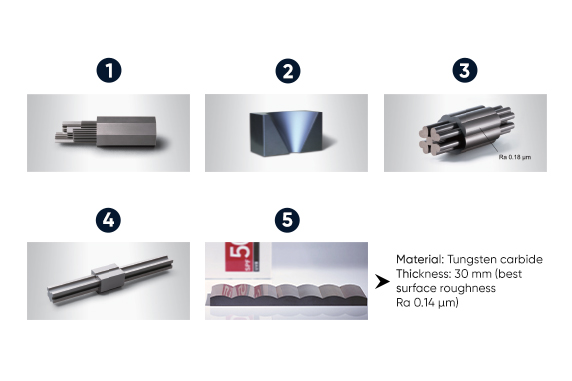

Parameter |
Sample - 1 |
Sample - 2 |
Sample - 3 |
Sample - 4 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.2mm/Brass |
0.25mm/Brass |
0.25mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
|
30° |
|
|
|
Thickness |
50mm |
50mm |
200mm |
50mm |
|
No. of Cut |
1 cut 2 skim |
1 cut 3 skim |
1 cut 2 skim |
1 cut 4 skim |
Standard Accessories
- Ion Exchange Resin x 10 L
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 2 sets
- Conductive Plates x 2 pcs
- Brass Wire x 1 Spool
- Clamping Tool x 1 Set
- Vertical alignment jig x 1 set
Optional Accessories
- XY axis linear scale
- Remote monitor system
- Rotary Table
- Double Door
- CAD/CAM
- Wire Diameter - 0.07 & 0.1 mm (opt)
- Many more accessories
Frequently Asked Questions
What is S&T EXCETEK CNC Wire EDM V 500GPlus?
S&T Engineers offers the V 500GPlus CNC Wire Cut EDM Machine, a compact-size Wire EDM machine designed for high-precision machining, automatic wire threading, superior surface finish, and reliable cutting performance.
What are the key specifications of S&T EXCETEK CNC Wire EDM V 500GPlus?
Max. work piece dimension (WxDxH): 850 × 600 × 255 mm. Max. work piece weight: 600 kg. Machine Size: 2215 x 2480 x 2205 mm. Machine weight (Machine + Generator + Tank): 3500 kg
Which machine category does S&T EXCETEK CNC Wire EDM V 500GPlus belong to?
S&T EXCETEK CNC Wire EDM V 500GPlus belongs to the CNC Wire EDM Machines category.
How can I request a quote for S&T EXCETEK CNC Wire EDM V 500GPlus?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
