EXCETEK CNC Wire EDM V 1280
V 1280
EXCETEK CNC Wire EDM V 1280
S&T Engineers supplies premium EXCETEK CNC Wire Cut EDM V 1280 Machines in India, delivering advanced Taiwanese Wire EDM technology for high-precision machining, complex profile cutting, and exceptional surface finish in demanding manufacturing applications.
X/Y/Z & U/V Travel (mm)
1200×800×500 & 260×260
Wire Diameter
Ø 0.2~0.33 mm
Surface Finish (1+3 Cut)
0.35 Std, 0.15 (opt) μRa
Specification
V 1280
Unit
Values
| Max. work piece dimension (WxDxH) | mm | 1600 × 1200 × 495, 595/795 (opt) |
| Max. work piece weight | kg | 4000 |
| Machine Size | mm | 4410 x 3765 x 2585 |
| Machine weight (Machine + Generator + Tank) | kg | 7300 |
Features
Operational Features
Designed to handle large workpieces up to 4100kg, with two Z-axis configurations available.- Two step drop door design, simplifies operation and in-process inspection, and streamlines workpiece loading and unloading.
Smart Features
- Auto Measurement System
- E-Learning
- Scrap-removing Device
- Intelligence Control
- Automation
- System Diagnosis
- Utilization
- NC File Transmission
- Maintenance
- Industrial IOT

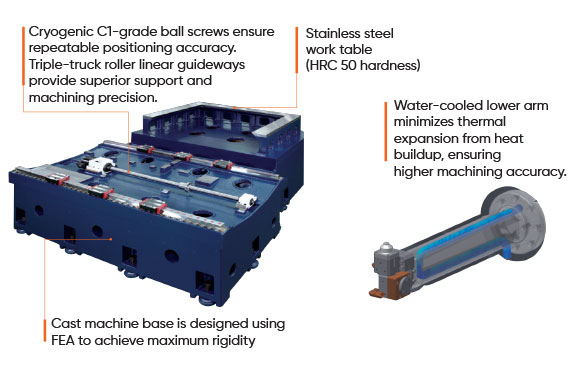

Machine Design
- Water cooled lower arm optimizes accuracy by minimizing thermal expansion caused by heat buildup.
- Premium grade cryogenic C1 grade ball screws ensure repeatable positioning accuracy. Roller type linear guide ways use three support blocks to provide machining support and accuracy during both positioning and cutting.
- Stainless steel work table (HRC 50 hardness)
- Cast machine base is designed using FEA to achieve maximum rigidity.
Controller - W6
- CNC Device: Industrial PC
- CPU: Pentium 64-bit high speed CPU
- Operation Interface: 15" LCD touch-screen, Keyboard, Mouse
- Input Interface: LAN, USB driver, RS-232
- Memory Capacity: 32 GB SSD
- Minimum Command Unit: 0.0001 mm
- Maximum Programmable Dimension: ±9999.9999 mm
- Unit: Metric/Inch switchable
Annealing wire threading
- Wire Break Re-Threading: Annealing straightens the wire, enabling re-threading at the break point during machining with virtually 100% reliability, eliminating the need to return to the start hole.
- Submerged Wire Threading: Performs automatic wire threading during submerged machining without draining or refilling the work tank.
- Multi-Hole Machining: If re-threading fails, the machine automatically skips to the next hole and stores the skipped location for later completion.
|
Parameter |
Sample - 1 |
Sample - 2 |
Sample - 3 |
Sample - 4 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.25mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
30° |
|
|
|
|
Start Hole |
|
|
|
0.7mm |
|
Thickness |
50mm |
Punch 50mm |
50mm |
15mm |
|
No. of Cut |
1 cut 3 skim |
1 cut 2 skim |
1 cut 2 skim |
No cone cut |
|
Cutting Time |
5hr 30min |
Punch 45min |
Punch 3hr 40min Die 4hr 35min |
48hr 35min |
|
Each Hole Cycle |
|
|
|
70 sec |
Standard Accessories
- Ion Exchange Resin x 10 L
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 2 sets
- Energizing plates x 2 pcs
- Brass Wire x 1 Spool
- Clamping Tool x 1 Set
- Vertical alignment jig x 1 set
Optional Accessories
- Clamping Beam
- Short Message Service (SMS)
- Remote monitor system
- W-Axis
- Jumbo Feeder L-50A
- Signal Tower
Frequently Asked Questions
What is EXCETEK CNC Wire EDM V 1280?
S&T Engineers supplies premium EXCETEK CNC Wire Cut EDM V 1280 Machines in India, delivering advanced Taiwanese Wire EDM technology for high-precision machining, complex profile cutting, and exceptional surface finish in demanding manufacturing applications.
What are the key specifications of EXCETEK CNC Wire EDM V 1280?
Max. work piece dimension (WxDxH): 1600 × 1200 × 495, 595/795 (opt) mm. Max. work piece weight: 4000 kg. Machine Size: 4410 x 3765 x 2585 mm. Machine weight (Machine + Generator + Tank): 7300 kg
Which machine category does EXCETEK CNC Wire EDM V 1280 belong to?
EXCETEK CNC Wire EDM V 1280 belongs to the CNC Wire EDM Machines category.
How can I request a quote for EXCETEK CNC Wire EDM V 1280?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
