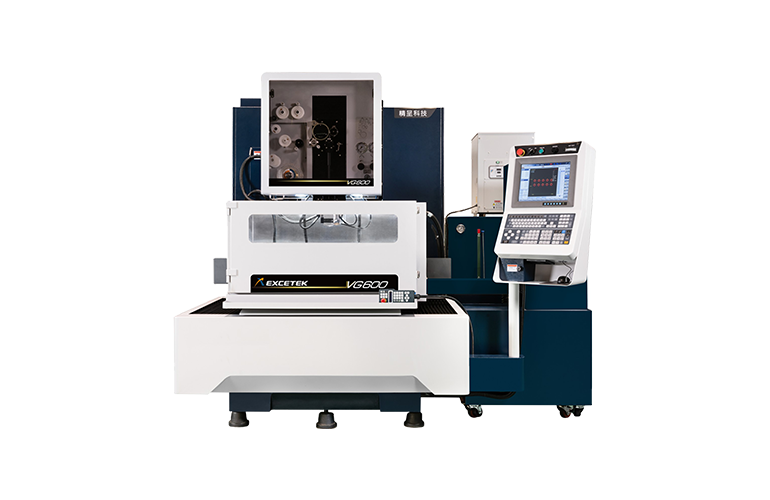

S&T EXCETEK CNC Wire EDM VG 600
VG 600
S&T EXCETEK CNC Wire EDM VG 600
The VG 600 CNC Wire Cut EDM Machine is a medium-sized, high-precision model built for demanding machining applications, offering outstanding accuracy, intelligent automation, and consistent cutting performance.
X/Y/Z & U/V Travel
600×400×310 & 120×120
Wire Diameter
Ø 0.15~0.3 mm
Best Surface Finish (1+3 Cut)
0.35 Std, 0.15 (opt) μRa
Specification
VG 600
Unit
Values
| Max. work piece dimension (WxDxH) | mm | 1000 × 700 × 305 |
| Max. work piece weight | kg | 750 |
| Machine Size | mm | 2550 x 2600 x 2200 |
| Machine weight (Machine + Generator + Tank) | kg | 3850 |
Features

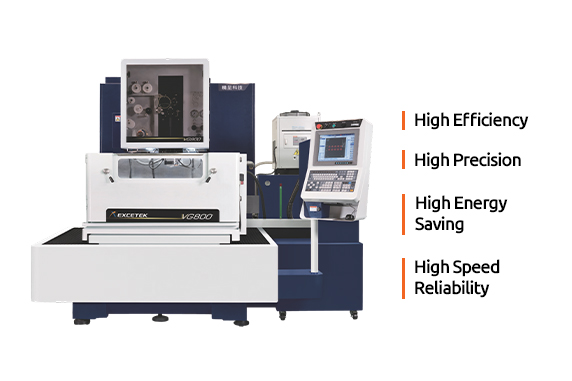

Operational Features
High Efficiency: Advanced control, DPM intelligent processing, and high-speed discharge system.- High-Speed Reliability: Auto threading, submerged threading, and permeable mold processing.
- High Energy Saving: Smart power management with low maintenance costs.
- High Precision: Smart corner control, stable cutting, and rigid mechanical structure.
Machine Design

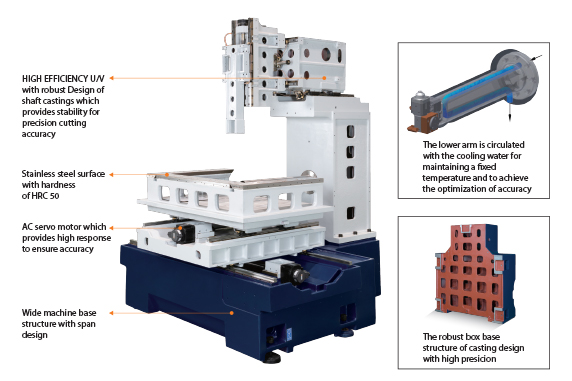

High-Rigidity Casting Structure: FEA-designed reinforced rib construction minimizes casting deformation and ensures superior stability and precision.

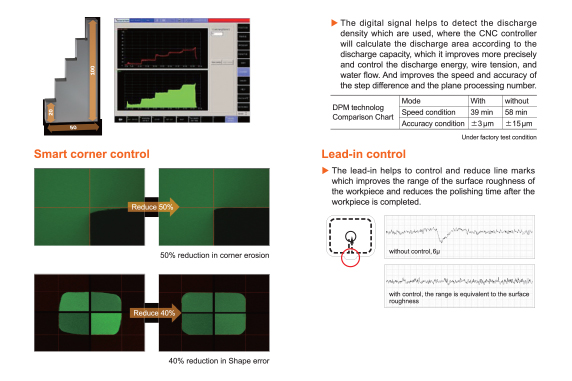

Digital Power Management - DPM
- Step processing condition
- Stable processing module
- Intelligent corner control
- Lead-in control
- Corner arc control
- High speed working condition

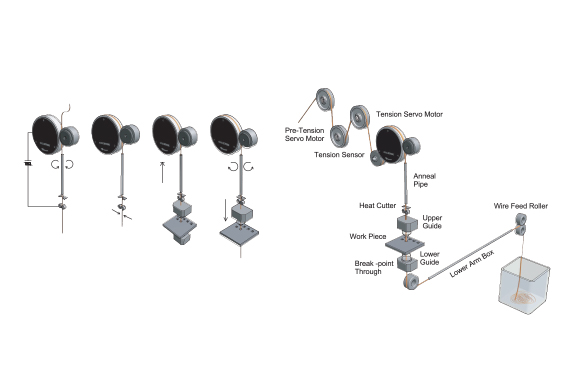

Reliable Auto Wire Threading system
High-Reliability Auto Threading: Enables stable unmanned machining with low threading errors and supports water jet & air threading for workpieces up to 500 mm thickness.
|

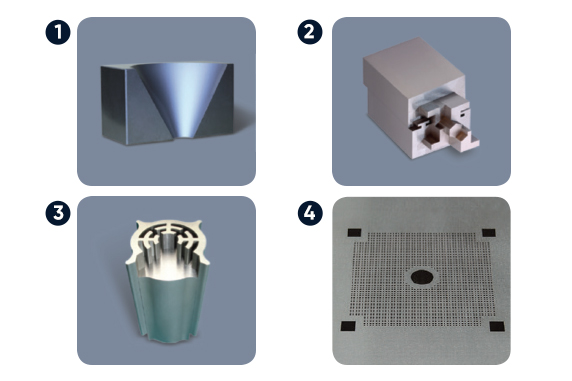

Parameter |
Sample - 1 |
Sample - 2 |
Sample - 3 |
Sample - 4 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.25mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
30° |
|
|
|
|
Cut Hole |
|
|
|
0.7mm |
|
Thickness |
50mm |
Punch 50mm |
50mm |
15mm |
|
No. of Cut |
1 cut 3 skim |
1 cut 2 skim |
1 cut 2 skim |
Nil |
Standard Accessories
- Ion Exchange Resin
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 2 sets
- Conductive Plates x 2 pcs
- Brass Wire x 1 Spool 5kg
- Clamping Tool x 1 Set
Optional Accessories
- Two stage tank door
- X/Y axis linear scale
- Clamping Beam
- Wire Chopper
- Jumbo Feeder
- Rotary Table
Frequently Asked Questions
What is S&T EXCETEK CNC Wire EDM VG 600?
The VG 600 CNC Wire Cut EDM Machine is a medium-sized, high-precision model built for demanding machining applications, offering outstanding accuracy, intelligent automation, and consistent cutting performance.
What are the key specifications of S&T EXCETEK CNC Wire EDM VG 600?
Max. work piece dimension (WxDxH): 1000 × 700 × 305 mm. Max. work piece weight: 750 kg. Machine Size: 2550 x 2600 x 2200 mm. Machine weight (Machine + Generator + Tank): 3850 kg
Which machine category does S&T EXCETEK CNC Wire EDM VG 600 belong to?
S&T EXCETEK CNC Wire EDM VG 600 belongs to the CNC Wire EDM Machines category.
How can I request a quote for S&T EXCETEK CNC Wire EDM VG 600?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
