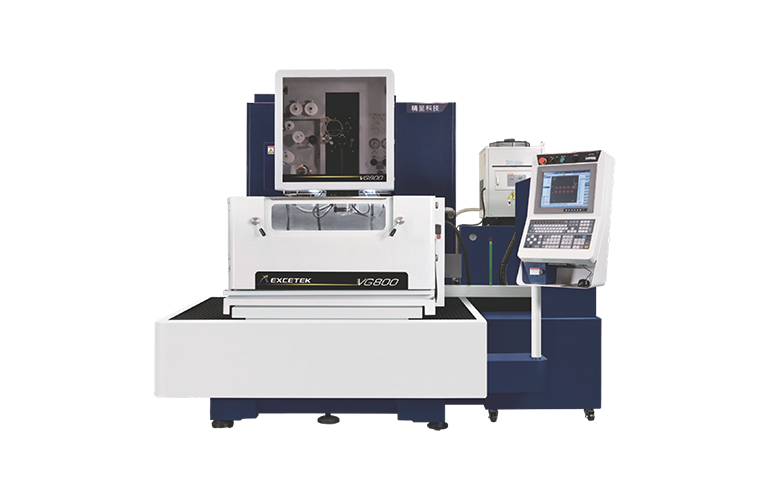

S&T EXCETEK CNC Wire EDM VG 800
VG 800
S&T EXCETEK CNC Wire EDM VG 800
S&T Engineers presents the VG 800 CNC Wire Cut EDM Machine, an economical Wire EDM solution featuring high-precision cutting, automatic wire threading, intelligent CNC control, and reliable machining performance.
X/Y/Z & U/V Travel
800×500×410 & 160×160
Wire Diameter
Ø 0.15~0.3 mm
Best Surface Finish (1+3 Cut)
0.35 Std, 0.15 (opt) μRa
Specification
VG 800
Unit
Values
| Max. work piece dimension (WxDxH) | mm | 1100 × 850 × 405 |
| Max. work piece weight | kg | 1300 |
| Machine Size | mm | 3200 x 2760 x 2439 |
| Machine weight (Machine + Generator + Tank) | kg | 5150 |
Features

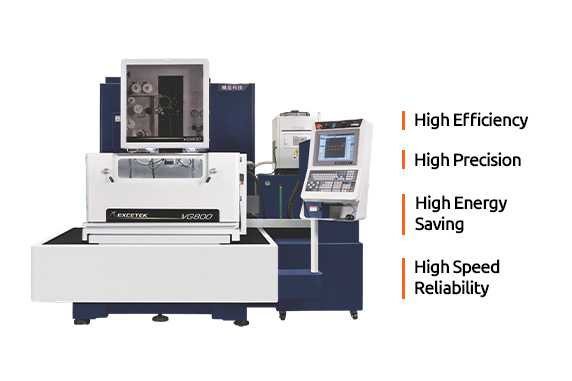

Operational Features
High Efficiency: Advanced control, DPM intelligent processing, and high-speed discharge system.- High-Speed Reliability: Auto threading, submerged threading, and permeable mold processing.
- High Energy Saving: Smart power management with low maintenance costs.
- High Precision: Smart corner control, stable cutting, and rigid mechanical structure.

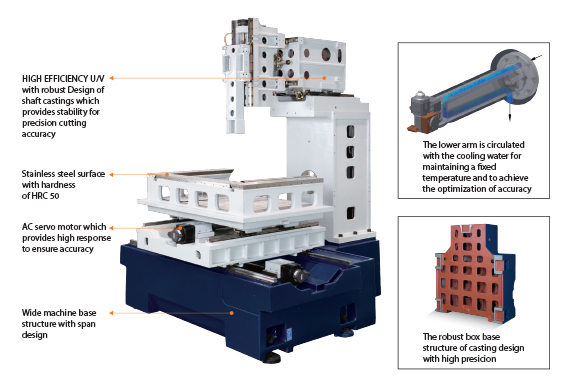

Machine Design
High-Rigidity Casting Structure: FEA-designed reinforced rib construction minimizes casting deformation and ensures superior stability and precision.

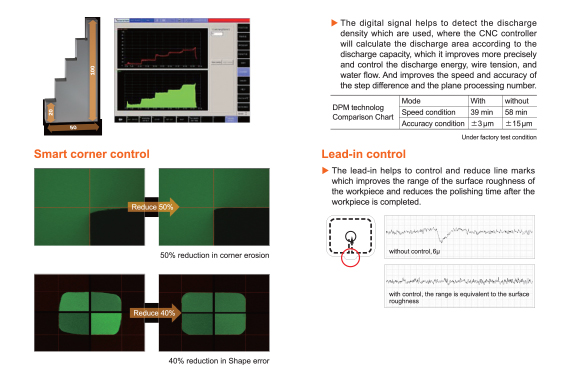

Digital Power Management - DPM
- Step processing condition
- Stable processing module
- Intelligent corner control
- Lead-in control
- Corner arc control
- High speed working condition

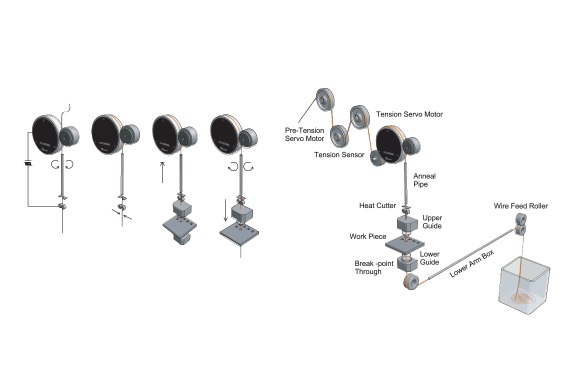

Reliable Auto Wire Threading system
High-Reliability Auto Threading: Enables stable unmanned machining with low threading errors and supports water jet & air threading for workpieces up to 500 mm thickness.
|

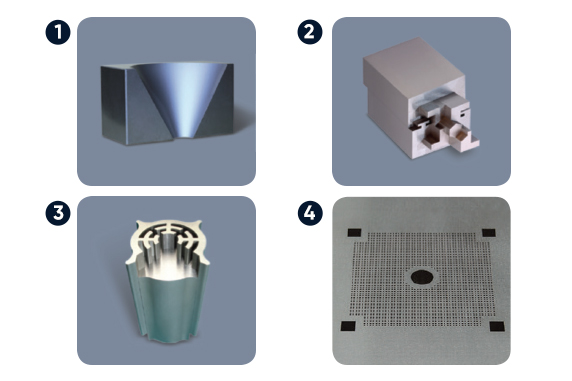

Parameter |
Sample - 1 |
Sample - 2 |
Sample - 3 |
Sample - 4 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.25mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
30° |
|
|
|
|
Cut Hole |
|
|
|
0.7mm |
|
Thickness |
50mm |
Punch 50mm |
50mm |
15mm |
|
No. of Cut |
1 cut 3 skim |
1 cut 2 skim |
1 cut 2 skim |
Nil |
Standard Accessories
- Ion Exchange Resin
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 2 sets
- Conductive Plates x 2 pcs
- Brass Wire x 1 Spool 5kg
- Clamping Tool x 1 Set
Optional Accessories
- Two stage tank door
- X/Y axis linear scale
- Clamping Beam
- Wire Chopper
- Jumbo Feeder
- Rotary Table
Frequently Asked Questions
What is S&T EXCETEK CNC Wire EDM VG 800?
S&T Engineers presents the VG 800 CNC Wire Cut EDM Machine, an economical Wire EDM solution featuring high-precision cutting, automatic wire threading, intelligent CNC control, and reliable machining performance.
What are the key specifications of S&T EXCETEK CNC Wire EDM VG 800?
Max. work piece dimension (WxDxH): 1100 × 850 × 405 mm. Max. work piece weight: 1300 kg. Machine Size: 3200 x 2760 x 2439 mm. Machine weight (Machine + Generator + Tank): 5150 kg
Which machine category does S&T EXCETEK CNC Wire EDM VG 800 belong to?
S&T EXCETEK CNC Wire EDM VG 800 belongs to the CNC Wire EDM Machines category.
How can I request a quote for S&T EXCETEK CNC Wire EDM VG 800?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
