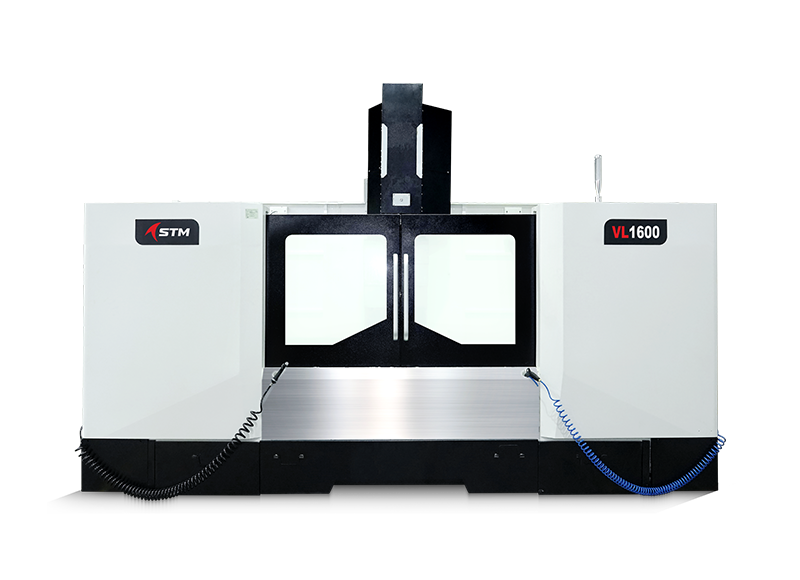

STM Vertical Machining Center VL/VD 1600
VL/VD 1600
STM Vertical Machining Center VL/VD 1600
STM Vertical Machining Center VL/VD 1300 For High Speed And High Accuracy Machining. With Optional Half Guarding Option And Wide Door Area To Support Larger Work Piece
Table(LxW)(mm)
1800x800
Travel(XxYxZ)(mm)
1600x800x750
Spindle
Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional)
Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional)
Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional)
Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)
Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional)
Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional)
Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)
Specification
VL/VD 1600
Unit
Values
| X/Y/Z Travel | mm | 1600/800/750 |
| X/Y/Z Ball Screws | mm | C3 50 |
| Table Size | mm | 1800x800 |
| Max.Table Load | Kg | 2000 |
| Machine Dimension(LxWxH) | mm | 4,655 X 2,880 X 3,175 |
| Machine Net Weight(approx.) | Kg | 11,000 |
Frequently Asked Questions
What is STM Vertical Machining Center VL/VD 1600?
STM Vertical Machining Center VL/VD 1300 For High Speed And High Accuracy Machining. With Optional Half Guarding Option And Wide Door Area To Support Larger Work Piece
What are the key specifications of STM Vertical Machining Center VL/VD 1600?
X/Y/Z Travel: 1600/800/750 mm. X/Y/Z Ball Screws: C3 50 mm. Table Size: 1800x800 mm. Max.Table Load: 2000 Kg
Which machine category does STM Vertical Machining Center VL/VD 1600 belong to?
STM Vertical Machining Center VL/VD 1600 belongs to the Vertical Machining Center category.
How can I request a quote for STM Vertical Machining Center VL/VD 1600?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
