NP600L

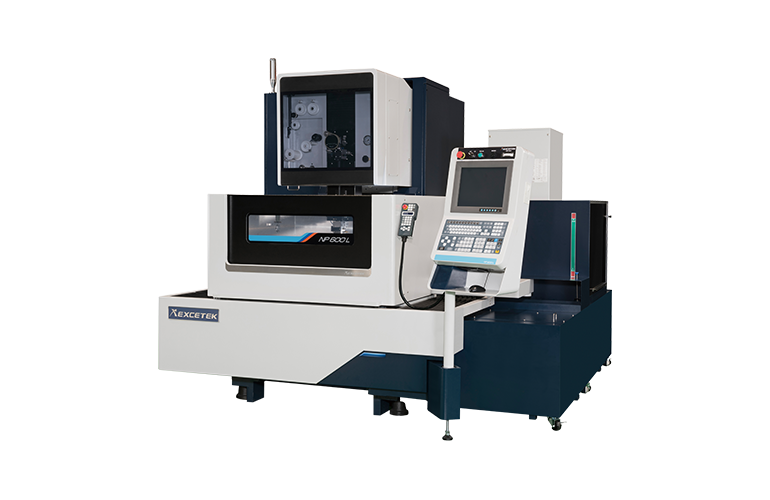

EXCETEK CNC Wire EDM NP600L
S&T Engineers, India's Leading Taiwanese EDM Machineries Distributor From World Renowned EXCETEK Brand. Excetek NP Series Linear Motor CNC Wire Cutting EDM Machine With Auto Measurement System For High Precision Requirements.
Table Travel (X X Y)
600 X 400
Axis Travel (U X V X Z)
160 X 160 X 410(option)
Axes Control

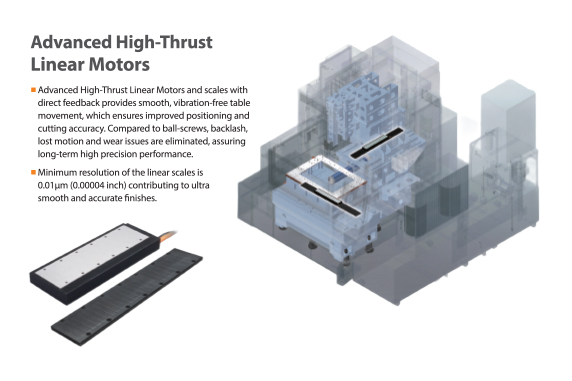

XY Axis Linear Motor, UVZ Axis AC Servo Motor
SPECIFICATION
NP600L
Unit
Values
Machine feature

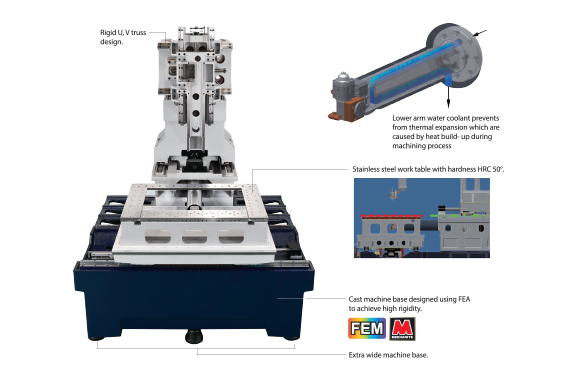

1. Rigid U, V truss design
2. Stainless steel worktable with hardness HRC 50°.
3. Machine Casting is designed based on the FEA analysis for increasing the rigidity.
4. Machine base with extra wide.
5. The machine maintains a constant temperature to improve machining accuracy, countering heat from the linear motor. Water circulation reduces the motors temperature, ensuring high thrust, efficiency, and low energy consumption.
6. Improved Operability - Side Hardened Stainless Steel Table
7. Certified by TUV for safety and design
8. Power slider door saves space and ensures easy operation
Machine feature

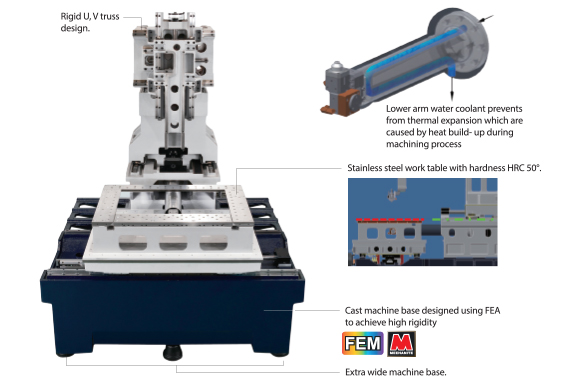

1. Rigid U, V truss design
2. Stainless steel worktable with hardness HRC 50°.
3. Machine Casting is designed based on the FEA analysis for increasing the rigidity.
4. Machine base with extra wide.
5. The machine maintains a constant temperature to improve machining accuracy, countering heat from the linear motor. Water circulation reduces the motors temperature, ensuring high thrust, efficiency, and low energy consumption.
6. Improved Operability - Side Hardened Stainless Steel Table
7. Certified by TUV for safety and design
8. Power slider door saves space and ensures easy operation
Reliable Auto Wire Threading system
1. In EXCETEK, AWT provides a sophisticated design which generates continuous unmanned operation for 24 hours. Unlike other systems it can thread from the point of the wire breakage or break point.
A water jet function enables the machine to thread workpieces up to 500mm.
2. High Speed Auto Wire Threading System

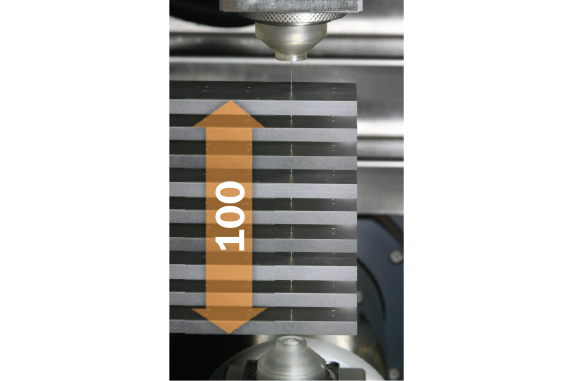

Workpiece thickness 100mm
• Wire annealing and cutting : 10 sec
• Threading : 10 sec
| Type | Without control | Using control |
| A | 0 | 0 |
| B | 0 ~ -2 µm | -8 ~ -10 µm |
| C | 0 | 0 |
| D | 0 ~ -2 µm | -8 ~ -10 µm |
| Type | Without control | Using control |
| A | 0 | 0 |
| B | 0 ~ -2 µm | -8 ~ -10 µm |
| C | 0 | 0 |
| D | 0 ~ -2 µm | -8 ~ -10 µm |
| Remote Monitor System |
