SKITEK Medium Speed CNC Wire EDM SR 600G
SR 600G
SKITEK Medium Speed CNC Wire EDM SR 600G
SKITEK Medium Speed CNC Wire EDM SR 600G molybdenum recirculating wire cnc edm. Cost effective, excellent surface finish, best reliable cnc wire edm machine
X x Y x Z Travel (mm)
400 x 600 x 300
Job accuracy
±0.005 mm
Stable cutting speed
130 mm² / min
Specification
SR 600G
Unit
Values
| Machine dimension (W x L x H) | mm | 1540 x 1920 x 2020 |
| Machine weight | kg | 2000 |
Features
Machine Highlights
Best surface finish achievable up to 0.40 micron Ra very closer to Brass type wire EDM- "C" Type casting structure for improved rigidity.
- Workpiece axis rotation is possible.
- Multiple work coordinates, such as G54 to G59 are available.
- Cutting technology supports workpiece up to 1000mm
Salient Feature
- The operation is designed to be user friendly and inserting wire is easy
- The wire tension is automatically regulated.
- There is no requirement to disconnect or remove the wire for different workpiece thicknesses when performing Z-axis movements
- The selection of cutting data is done automatically, and it ensures consistent results in terms of accuracy and finish for every job.
- The system incorporates an automatic lubrication mechanism

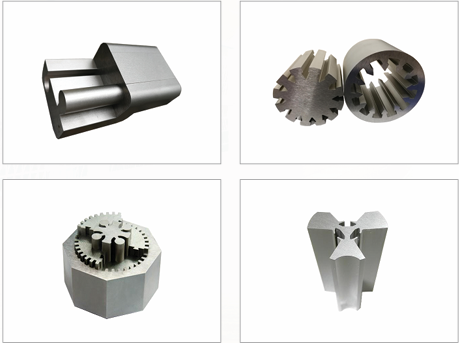

Sample Trial Components
Standard Accessories

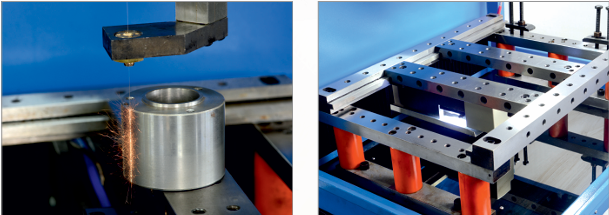

- The machine incorporates a wire alignment block and Toolbox Set.
- The machine is equipped with job clamping tools.
- ϕ 0.18 mm Wire Spool (2000 Mtrs) - 1 No.
- Power Feeder Carbide - 3 Nos.
- ϕ 0.18 mm Ruby Guide - 2 Nos.
- Jairun Working Solution - 18 Ltrs.
- Mouse, Keyboard with Mouse Pad - 1 Set.
- Aluminium Alloy Paper Filter - 1 No
Optional Accessories
- Roller disassembly unit.
- Wire drawer unit.
- Aluminium cutting circuit.
- Z height 350 mm / 500 mm
Frequently Asked Questions
What is SKITEK Medium Speed CNC Wire EDM SR 600G?
SKITEK Medium Speed CNC Wire EDM SR 600G molybdenum recirculating wire cnc edm. Cost effective, excellent surface finish, best reliable cnc wire edm machine
What are the key specifications of SKITEK Medium Speed CNC Wire EDM SR 600G?
Machine dimension (W x L x H): 1540 x 1920 x 2020 mm. Machine weight: 2000 kg. Table travel (X x Y x Z): 400 x 600 x 300 mm. Table Size (W x L): 680 x 940 mm
Which machine category does SKITEK Medium Speed CNC Wire EDM SR 600G belong to?
SKITEK Medium Speed CNC Wire EDM SR 600G belongs to the Medium Speed CNC Wire EDM category.
How can I request a quote for SKITEK Medium Speed CNC Wire EDM SR 600G?
Use the Get Quote or For Enquiry option available on this product page to contact S&T Engineers.
